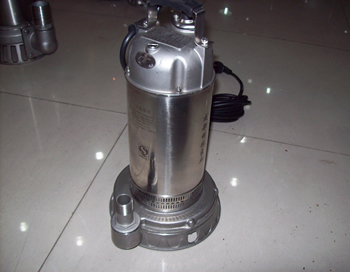

WQ stainless steel submersible sewage pump
WQ stainless steel submersible sewage pump is used for the discharge of severely polluted wastewater from chemical and commercial industries, the drainage system of urban sewage treatment plants, hospitals, hotels, mines, power plants, rural biogas digesters, farmland irrigation, etc.
Uses and features:
WQ series sewage and sewage all-stainless steel precision casting submersible electric pump adopts a double-channel impeller structure, which greatly improves the passage capacity of the sewage. The product can be equipped with an automatic stirring device, which rotates with the motor shaft to generate a strong stirring force , The sediment in the sewage tank is stirred into suspended solids, sucked into the pump and discharged, which improves the anti-blocking and sewage discharge capabilities of the pump, completes drainage, cleaning, and desilting at one time, saving operating costs, and has obvious practicability Environmentally friendly products.
It is suitable for the discharge of severely polluted wastewater from chemical and commercial industries, the drainage system of urban sewage treatment plants, hospitals, hotels, mines, power plants, rural biogas digesters, farmland irrigation, etc.
The temperature of the medium does not exceed 60℃, the density does not exceed 1~3kg/dm3, and the PH value is within the range of 4-10.
304 and 316 stainless steel materials can be applied to various corrosive media.
Note: If the user has special media, temperature and other requirements, please indicate the details of the conveying media when ordering, so that the company can provide products that meet the requirements of use.
technical parameter:
|
型號 |
功率(kW) |
口徑(mm) |
電源(V/Hz) |
大流量(L/min) |
大揚(yáng)程(m) |
| (JY)WQ7-15-1.1S | 1.1 | 50 | 380/50 | 333 | 19 |
| (JY)WQ15-9-1.1S | 1.1 | 65 | 380/50 | 417 | 15 |
| (JY)WQ12-15-1.5S | 1.5 | 50 | 380/50 | 383 | 19 |
| (JY)WQ25-10-1.5S | 1.5 | 65 | 380/50 | 667 | 16 |
| (JY)WQ9-22-2.2S | 2.2 | 50 | 380/50 | 350 | 33 |
| (JY)WQ20-18-2.2S | 2.2 | 65 | 380/50 | 500 | 29 |
| (JY)WQ45-9-2.2S | 2.2 | 80 | 380/50 | 917 | 13 |
| (JY)WQ50-7-2.2S | 2.2 | 100 | 380/50 | 1000 | 11 |
| (JY)WQ15-30-3S | 3 | 50 | 380/50 | 333 | 40 |
| (JY)WQQ25-22-3S | 3 | 65 | 380/50 | 583 | 36 |
| (JY)WQ40-15-3S | 3 | 80 | 380/50 | 917 | 25 |
| (JY)WQ60-9-3S | 3 | 100 | 380/50 | 1250 | 12 |
| (JY)WQ15-32-4S | 4 | 50 | 380/50 | 417 | 46 |
| (JY)WQ25-25-4S | 4 | 65 | 380/50 | 617 | 32 |
| (JY)WQ30-26-4S | 4 | 80 | 380/50 | 717 | 32 |
| (JY)WQ50-10-4S | 4 | 100 | 380/50 | 1000 | 17 |
| (JY)WQ18-32-5.5S | 5.5 | 50 | 380/50 | 433 | 47 |
| (JY)WQ25-30-5.5S | 5.5 | 65 | 380/50 | 583 | 43 |
| (JY)WQ40-22-5.5S | 5.5 | 80 | 380/50 | 967 | 29 |
| (JY)WQ70-10-5.5S | 5.5 | 100 | 380/50 | 1550 | 16 |
| (JY)WQ100-7-5.5S | 5.5 | 150 | 380/50 | 2000 | 12 |
| (JY)WQ25-50-7.5S | 7.5 | 50 | 380/50 | 617 | 67 |
| (JY)WQ30-40-7.5S | 7.5 | 65 | 380/50 | 800 | 52 |
| (JY)WQ45-22-7.5S | 7.5 | 80 | 380/50 | 967 | 31 |
| (JY)WQ80-15-7.5S | 7.5 | 100 | 380/50 | 1667 | 27 |
| (JY)WQ100-12-7.5S | 7.5 | 150 | 380/50 | 2167 | 16 |
