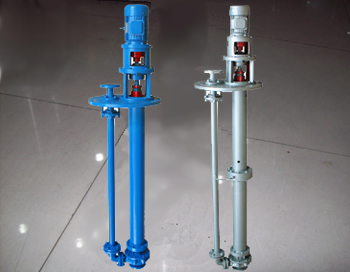

FY type cantilever submerged stainless steel centrifugal pump
FY type cantilever submerged stainless steel centrifugal pump, used in petroleum, chemical, pharmaceutical, papermaking, metallurgy, sewage treatment and other industries
product description:

The universally used mechanical seal and the unique structure of the impeller make the pump high efficiency, energy saving, no leakage, and long life. It is widely used in petroleum, chemical, pharmaceutical, papermaking, metallurgy, sewage treatment and other industries.



Features:

1. The pump is a vertical submerged pump with a beautiful appearance. It is directly installed on the storage of the medium to be transported without additional floor space, thus reducing capital investment.

2. The mechanical seal is eliminated, and the trouble of frequent maintenance of other submerged pumps due to the easy wear of the mechanical seal is solved, the operating cost of the pump is saved, and the work efficiency is improved.
3. A unique centrifugal double-balanced impeller is used to transport clean media that does not contain solid particles, with extremely low vibration and noise and high efficiency; an open double-balanced impeller is used to transport unclean liquids with solid particles and short fibers. It runs smoothly and does not block.


Performance parameter table:

型號

進(jìn)出口徑（MM）

流量

方每時|升每秒

揚(yáng)程（M）

轉(zhuǎn)速

軸功率|電機(jī)功率



液下深度

　　25FY-16

25

3.6

1

16

2900

0.713

1.5

500

至

5000

　　25FY-16A

25

3.27

0.91

13

2900

0.713

1.5

　　25FY-25

25

3.6

1

25

2900

1.16

2.2

　　25FY-25A

25

3.27

0.91

20

2900

1.16

2.2

　　25FY-41

25

3.6

1

41

2900

2.51

4

　　25FY-41A

25

3.27

0.91

33

2900

2.51

3

　　40FY-16

32

7.2

2

16

2900

0.78

2.2

　　40FY-16A

32

6.55

1.82

13

2900

0.78

1.5

　　40FY-26

32

7.2

2

26

2900

1.45

3

　　40FY-26A

32

6.55

1.82

21

2900

1.45

3

　　40FY-40

32

7.2

2

40

2900

2.53

5.5

　　40FY-40A

32

6.55

1.82

32

2900

2.53

5.5

　　50FY-16

40

14.4

4

16

2900

1.18

3

　　50FY-16A

40

13.1

3.64

13

2900

1.18

3

　　50FY-25

40

14.4

4

25

2900

1.96

4

　　50FY-25A

40

13.1

3.64

20

2900

1.96

3

　　50FY-40

40

14.4

4

40

2900

3.73

7.5

　　50FY-40A

40

13.1

3.61

33

2900

3.73

5.5

　　65FY-16

50

28.8

8

16

2900

2.16

4

　　65FY-16A

50

26.2

7.28

13

2900

2.16

3

　　65FY-25

50

28.8

8

25

2900

3.56

5.5

　　65FY-25A

50

26.2

7.28

21

2900

3.56

5.5

　　65FY-40

50

28.8

8

40

2900

6.04

11

　　65FY-40A

50

26.2

7.28

33

2900

6.04

11

　　80FY-15

65

54

15

15

2900

3.34

7.5

　　80FY-15A

65

49.1

13.65

12

2900

3.34

7.5

　　80FY-24

65

54

15

24

2900

5.43

11

　　80FY-24A

65

49.1

13.65

20

2900

5.43

11

　　80FY-38

65

54

15

38

2900

9.64

18.5

　　80FY-38A

65

49.1

13.65

31

2900

9.64

15

　　100FY-23

80

100.8

28

23

2900

9.25

18.5

　　100FY-23A

8

91.8

25.5

18

2900

9.25

15

　　100FY-37

80

100.8

28

37

2900

14.73

22

　　100FY-37A

80

91.8

25.5

31

2900

14.73

22
