XBC-XQ series fire-fighting frequency conversion constant pressure water supply unit
XBC-XQ series fire-fighting frequency conversion constant pressure water supply unit, fire-fighting voltage regulator for industrial and civil buildings, constant pressure water supply for HVAC, boilers, concealed projects, small industrial and mining

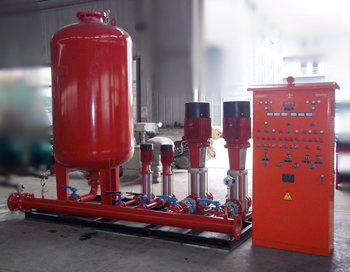

XBC-XQ fire-fighting stabilized water supply equipment is a new type of constant pressure water supply equipment that uses non-toxic capsules as gas-water isolation. The equipment is inflated once and runs all year round. When working, it can control the water supply of the stabilized pump through the electric contact pressure gauge to ensure constant pressure in the pipe network and continuous water supply. When the water consumption of the pipe network increases, a fire alarm occurs or the fire hydrant is opened, an under-pressure alarm signal is output.
XBC-XQ fire-fighting stabilized water supply equipment is composed of control cabinet, stabilized pump, air pressure tank, electric contact pressure gauge and pipeline components. Users can choose the combination according to their needs and add dual power control, low-level water intake tank and automatic water replenishment. Features.
Features:
The equipment is small in size, compact in structure, not restricted by water supply occasions, and can be set at any height to supply water to the fire fighting pipe network;
It has the advantages of low investment, short construction period, simple construction and installation, and easy realization of automatic control;
Scope of application:
Fire-fighting stabilized water supply for industrial and civil buildings;
Constant pressure make-up water for HVAC, air conditioning and boilers;
Concealed projects, temporary buildings and small industrial and mining, water supply for living in remote areas.
Technical Parameters:
Flow range: 0～30m3/h
Pressure range: 0～2.5MPa
Motor power: 0.75～22kW
Ambient temperature: 5℃-40℃
Relative humidity: 20%-90%
Liquid temperature: 5℃-80℃
Performance parameter table:
|
序號
|
穩(wěn)壓設備型號
|
消防壓力(Mpa)P1
|
隔膜式氣壓罐
|
配用水泵
|
運行壓力
(Mpa)
|
|||
|
型號規(guī)格
|
工作壓力比αb
|
消防儲水容積(L)
|
型 號
|
|||||
|
標定容積
|
穩(wěn)壓水容積
|
|||||||
|
1
|
XQ G -Ⅰ-10
|
0.10
|
XQG600×0.6
|
0.60
|
150
|
159
|
ISG32-160
N=1.5kw
|
P1=0.10 PS1=0.16
P2=0.13 PS2=0.31
|
|
2
|
XQ G -Ⅰ-16
|
0.16
|
XQG600×0.6
|
0.60
|
150
|
159
|
ISG32-200A
N=2.2kw
|
P1=0.16 PS1=0.26
P2=0.23 PS2=0.42
|
|
3
|
XQ G -Ⅰ-22
|
0.22
|
XQG600×0.6
|
0.60
|
150
|
159
|
ISG32-200
N=3.0kw
|
P1=0.22 PS1=0.31
P2=0.28 PS2=0.46
|
|
4
|
XQ G(W) -Ⅰ-10
|
0.10
|
XQG800×0.6
|
0.60
|
300
|
320
|
ISG40-160
N=2.2kw
|
P1=0.10 PS1=0.16
P2=0.13 PS2=0.31
|
|
5
|
XQ G(W) -Ⅰ-16
|
0.16
|
XQG800×0.6
|
0.60
|
300
|
320
|
ISG40-200A
N=3.0kw
|
P1=0.16 PS1=0.26
P2=0.23 PS2=0.42
|
|
6
|
XQ G(W) -Ⅰ-22
|
0.22
|
XQG800×0.6
|
0.60
|
300
|
320
|
ISG40-200
N=4.0kw
|
P1=0.22 PS1=0.31
P2=0.28 PS2=0.46
|
|
7
|
XQ G(W) -Ⅱ-Z-38
|
0.22-0.38
|
XQW800×0.6
|
0.85
|
150
|
234
|
25LG3-10×6
N=2.2kw
|
P1=0.38 PS1=0.48
P2=0.43 PS2=0.60
|
|
8
|
XQ G(W) -Ⅱ-Z-50
|
0.38-0.50
|
XQW800×1.0
|
0.85
|
150
|
234
|
25LG3-10×8
N=2.2kw
|
P1=0.50 PS1=0.60
P2=0.56 PS2=0.75
|
|
9
|
XQ G(W) -Ⅱ-Z-65
|
0.50-0.65
|
XQW800×1.0
|
0.85
|
150
|
234
|
25LG3-10×10
N=3.0kw
|
P1=0.65 PS1=0.81
P2=0.77 PS2=0.93
|
|
10
|
XQ G(W) -Ⅱ-Z-85
|
0.65-0.85
|
XQW800×1.6
|
0.85
|
150
|
234
|
25LG3-10×12
N=4.0kw
|
P1=0.85 PS1=1.01
P2=0.93 PS2=1.10
|
|
11
|
XQ G(W) -Ⅱ-Z-100
|
0.85-1.00
|
XQW800×1.6
|
0.85
|
150
|
234
|
25LG3-10×14
N=4.0kw
|
P1=1.00 PS1=1.16
P2=1.09 PS2=1.27
|
|
12
|
XQ G(W) -Ⅱ-X-38
|
0.22-0.38
|
XQG1000×0.6
|
0.80
|
300
|
302
|
25LG3-10×6
N=2.2kw
|
P1=0.38 PS1=0.48
P2=0.43 PS2=0.60
|
|
13
|
XQ G(W)-Ⅱ-X-50
|
0.38-0.50
|
XQG1000×1.0
|
0.80
|
300
|
302
|
25LG3-10×8
N=2.2kw
|
P1=0.50 PS1=0.60
P2=0.56 PS2=0.75
|
|
14
|
XQ G(W) -Ⅱ-X-65
|
0.50-0.65
|
XQG1000×1.0
|
0.80
|
300
|
302
|
25LG3-10×10
N=3.0kw
|
P1=0.65 PS1=0.81
P2=0.77 PS2=0.93
|
|
15
|
XQ G(W) -Ⅱ-X-85
|
0.65-0.85
|
XQG1000×1.6
|
0.80
|
300
|
302
|
25LG3-10×12
N=4.0kw
|
P1=0.85 PS1=1.01
P2=0.93 PS2=1.10
|
|
16
|
XQ G(W) -Ⅱ-X-100
|
0.85-1.0
|
XQG1000×1.6
|
0.80
|
300
|
302
|
25LG3-10×14
N=4.0kw
|
P1=1.00 PS1=1.16
P2=1.09 PS2=1.27
|
|
17
|
XQ G(W) -Ⅱ-XZ-38
|
0.22-0.38
|
XQG1200×0.6
|
0.80
|
450
|
474
|
25LG3-10×6
N=2.2kw
|
P1=0.38 PS1=0.48
P2=0.43 PS2=0.60
|
|
18
|
XQ G(W) -Ⅱ-XZ-50
|
0.38-0.50
|
XQG1200×1.0
|
0.80
|
450
|
474
|
25LG3-10×8
N=2.2kw
|
P1=0.50 PS1=0.60
P2=0.56 PS2=0.75
|
|
19
|
XQ G(W) -Ⅱ-XZ-65
|
0.50-0.65
|
XQG1200×1.0
|
0.80
|
450
|
474
|
25LG3-10×10
N=3.0kw
|
P1=0.65 PS1=0.81
P2=0.77 PS2=0.93
|
|
20
|
XQ G(W) -Ⅱ-XZ-85
|
0.65-0.85
|
XQG1200×1.6
|
0.80
|
450
|
474
|
25LG3-10×12
N=4.0kw
|
P1=0.85 PS1=1.01
P2=0.93 PS2=1.10
|
|
21
|
XQ G(W) -Ⅱ-XZ-100
|
0.85-1.0
|
XQG1200×1.6
|
0.80
|
450
|
474
|
25LG3-10×14
N=4.0kw
|
P1=1.00 PS1=1.16
P2=1.09 PS2=1.27
|
