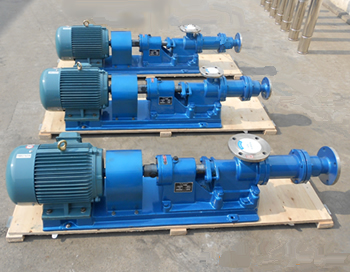

G-type single screw pump transports viscous and difficult to transport media. Liquids of various concentrations and dry materials that have been separated and dehydrated. Liquid containing solid particles, fibers, and suspended matter. A mixture of liquid, gas, and solid. Sensitive liquid that cannot be agitated, sheared, or looted. Corrosive liquid.

G type single screw pump conveying medium:

       Liquids of various viscosities, especially viscous and difficult-to-transport media. Liquids of various concentrations and dry materials that have been separated and dehydrated. Liquid containing solid particles, fibers, and suspended matter. A mixture of liquid, gas, and solid. Sensitive liquid that cannot be agitated, sheared, or looted. Corrosive liquid.

Working characteristics of G type single screw pump:

       It has a wide range of applications and can transport all flowing media and even non-flowing materials. Stable flow and pressure without pulsation. The output flow can be changed by changing the speed, which can be used for metering and dosing. Strong suction capacity, low working noise, no leakage and no temperature rise.

Performance parameter table:



型號	轉(zhuǎn)速 r/min	流量 m3/h	壓力 MPa	電機 KW	揚程 m	進口 mm	出口 mm
G25-1	960	2	0.6	1.5	60	32	25
G25-2	960	2	1.2	2.2	120	32	25
G30-1	960	5	0.6	2.2	60	50	40
G30-2	960	5	1.2	3.0	120	50	40
G35-1	960	8	0.6	3.0	60	65	50
G35-2	960	8	1.2	4.0	120	65	50
G40-1	960	12	0.6	4.0	60	80	65
G40-2	960	12	1.2	5.5	120	80	65
G50-1	960	20	0.6	5.5	60	100	80
G50-2	960	20	1.2	7.5	120	100	80
G60-1	960	30	0.6	11	60	125	100
G60-2	960	30	1.2	15	120	125	100
G70-1	960	45	0.6	15	60	150	125
