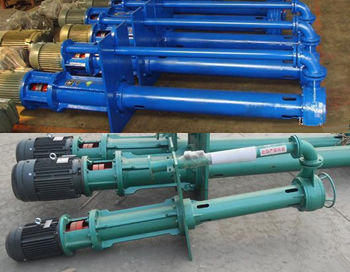

SP, SPR heavy vertical submerged slurry pump
SP type submerged slurry pump is a vertical centrifugal slurry pump, immersed in the liquid, used to transport abrasive, coarse particles, high-concentration slurry. It does not need any shaft seal and shaft seal water, and it can work normally under the conditions of insufficient suction.
Features:
SP type submerged slurry pump is a vertical centrifugal slurry pump, immersed in the liquid, used to transport abrasive, coarse particles, high-concentration slurry. It does not need any shaft seal and shaft seal water, and it can work normally under the conditions of insufficient suction.
SP pump flow parts are made of wear-resistant metal.
SPR pump immersed parts in the liquid are equipped with rubber outer lining, suitable for conveying abrasive slurry without edges and corners.
According to the liquid level of the slurry tank, pump drive shafts or suction pipes of different lengths can be selected.
Using multiple speeds and multiple variants, the pump can run under working conditions with long service life and high operating efficiency, and it can meet a variety of harsh conveying conditions.
Working conditions:
is mainly suitable for conveying corrosive, coarse particles and high-concentration slag slurry. It is widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other sectors.
Structural installation type:
SP pump is a vertical centrifugal slurry pump. The inlet of the pump is vertically downward, and the outlet is vertically upward on the other side of the pump. The pump is mainly composed of lower filter element, pump body, impeller, shaft, guard plate, bracket and other parts. The upper part of the pump is supported by a bearing; the pump is installed under the liquid without any shaft seal, and the flow parts are made of wear-resistant materials.
The transmission type of this type of pump is BD and DC, namely belt drive and direct drive. The depth of immersion in the liquid can be determined according to the actual needs of users within the standard size range.
Seen from the direction of the pump suction port, it rotates counterclockwise.
Performance parameter table:
|
型 號(hào) |
允許配帶大功率 |
性能范圍 |
葉 輪 |
||||
|
流量Q |
揚(yáng)程H |
轉(zhuǎn)速N |
高效率 |
葉片數(shù) |
|||
|
m3/h |
l/s |
m |
r/min |
η（%） |
|||
|
40PV-SP |
15 |
7.2-39.6 |
2-11 |
4.3-27.4 |
1000-2200 |
37 |
5 |
|
65QV-SP |
30 |
19.08-100.08 |
5.3-27.8 |
5-29.3 |
700-1470 |
50 |
5 |
|
100RV-SP |
75 |
41.5-259.2 |
11.5-72 |
5.1-36 |
500-1200 |
56 |
5 |
|
150SV-SP |
110 |
115.2-576 |
2-11 |
6.7-35.7 |
5000-1000 |
53 |
5 |
